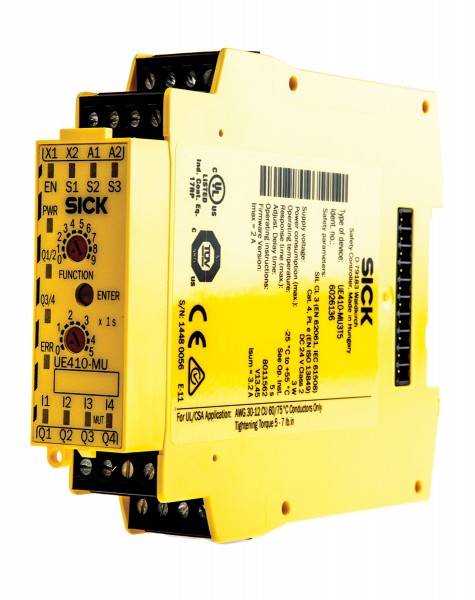

UE410 FLEXIClassic Modular Safety Controller, 8 Selectable Functions
This is the main module in the UE410 FLEXI system. 8 available programs can be set using rotary switches (e.g. emergency stop pushbuttons, Type IIIA and IIIC two-hand controls, safety interlock switches, non-contact switches, testable Type 2 sensors, hold to run switches, safety light curtains and safety light grids, safety laser scanners and muting sensors for two-input muting) plus AND, OR, Bypass and Muting functionality without the use of software tools.,This base unit has 4 safety inputs (the equivalent of two safety relays), 4 semiconductor outputs (to switch off any detected dangerous motion) and can control two applications that either act independently or are dependent on each other (instead of using two safety relays). Using available expansion modules the UE410 FLEXI system can offer 8 additional safety inputs (instead of using four more safety relays). This allows the system to be extended to up to 104 inputs or outputs. In this way the function of up to 6 safety relays can be replaced and wiring, programming and space can all be saved. The control category in accordance with EN 954-1 or the SIL in accordance with EN 61508 depends on the external circuit. Corresponds to up to control category 4 in accordance with EN 954-1; applications can reach up to SIL3 in accordance with IEC 61508. The emergency stop function corresponds to stop category 0 or 1 in accordance with,EN 60204-1. The UE410 FLEXI series consists of the following: main module UE410-MU, input/output extension UE410-XU, input extension module UE410-8DI, output modules UE410-2RO and UE410-4RO, diagnostics module UE410-DEV (DeviceNet), diagnostics module UE410-PRO (Profibus-DP)
Configurable Safety Relay
PL ISO 13849-1: E
Количество каналов: 1, 2
Ширина: 22.5мм
SIL IEC 61508: 3
Safety Category ISO 13849-1: 4
Производитель: Sick
Серия: UE410
Напряжение питания: 30 В пост. тока
Configurable: Yes
Длина: 96.5мм
Глубина: 120.8мм
